Two-component high-pressure airless sprayer, combining high efficiency with precision mixing technology, specifically designed for industrial-grade two-component coating applications. The equipment supports multiple mixing ratios from 1:1 to 1:4, meeting the precise proportioning requirements of different chemical system materials. Widely applicable for colored tile spraying, door industry adhesive spraying, interior and exterior wall latex paint coating; as well as heavy anti-corrosion and decorative projects for various industrial facilities, including: furniture, steel structures, oil tanks, lifting equipment, chemical equipment, automobiles, and trailers.

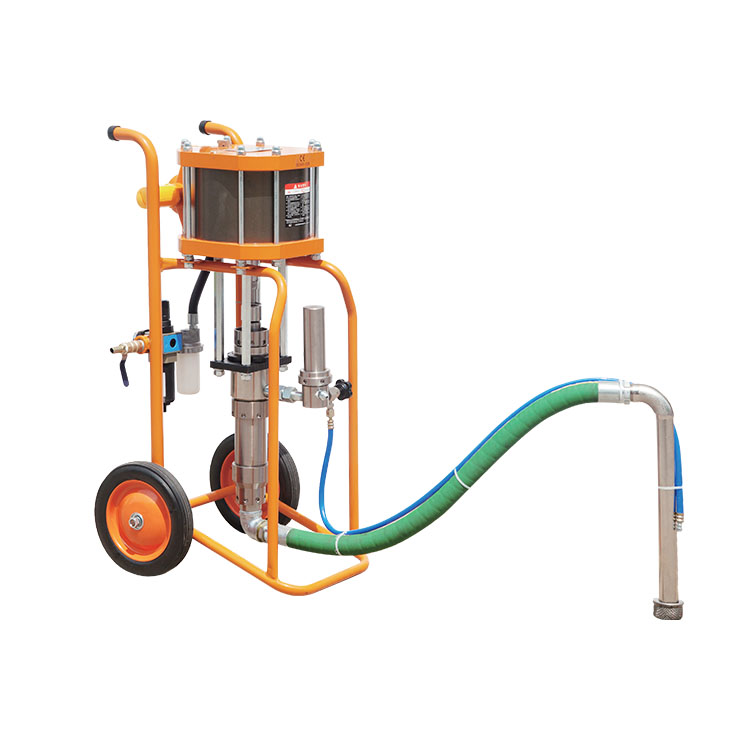

MST4040 high pressure aides sprayers are the speial praying equipment of inorganic zinc and epoxy zinc-rich coating,they are the thirlgeneraion series product ivented by our company. They are apolicable to spray on varied thic layer of inoganiczinc o epoxy in rich coatings an also aplicable to auto shot coating lines of varied stel, maintenance bottom coating,oil coating, magnetic coating, other WB coatings, reguar ol coating,ant-fre cating and varied catingsin the workshop of spraying inorganic zinc or epoxy zinc rich. They are mainly implemented on coatings of big component like stel tructure, C type tel,car, trailers, floors railwvay vehides, pressur containers Tubing, ifting equipment. dust removal equipments, wind power equipments, mining equipments, containers, pipes. tanks, bridges,water gateetc.
Product Parameters
|
Model |
Pressure xchanging rate |
Max displacement (L/min) |
Compress air (MPa) |
Air consumption (L/min) |
Diameter of cylinder (mm) |
Weight of the whole machine(Kg) |
Dimension LxWxH (mm) |
|
MST4040 |
40:1 |
40 |
0.3-0.6 |
100-1000 |
Φ250 |
70 |
520×580×960 |
